Blickfeld’s Smart Security LiDAR — producing and processing accurate and reliable 3D data on-device for advanced physical security applications.
With precise 3D point cloud data, Blickfeld QbProtect ensures reliable threat detection, minimizing false alarms and enabling a dependable response to actual security incidents.
The system features real-time object detection through on-device processing, seamless integration with industry-standard interfaces, and object-size based threat assessment. Built-in tampering and malfunction detection ensure system reliability, and rule-based alarm generation allows for a prompt response. The LiDAR system, based on Qb2 hardware, boasts a solid-state design, and IP67-rated housing for durability in both indoor and outdoor applications.
Unique Technical Advantages
No rotating mechanical components
- No friction or wear-out of components
- Camera-like robustness (MTBF)
- Durable LiDAR sensors for both indoor and outdoor use cases
400 scan lines lead to high resolution
- Allows determination of true object size even in large distances
- Ability to detect small objects
Camera-like field of view

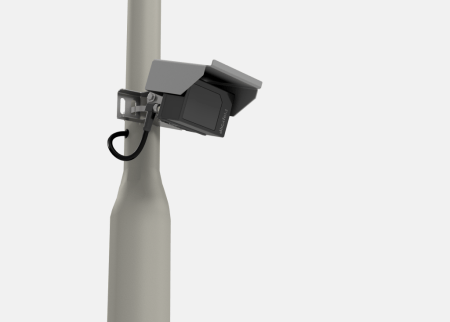

- Mounting very easy and similar to camera or thermal camera
On-device processing
- Processing on the edge allows continued operation even in case of network failure
- No external PC required
Key Specifications
Technical Data | |
---|---|
Field of view (H x V)* | 90° x 50° |
Range** | 85 m |
Frame rate | 1 – 50 Hz depending on configured scan pattern
|
Laser class | Class 1, eye-safe (IEC 60825-1:2014)
|
Ingress protection | IP67 |
Dimensions (H x W x D)*** | ca. 75 mm x 111 mm x 83 mm |
Weight*** | ca. 535 g |
Voltage input | Power over Ethernet (PoE); IEEE 802.3at Type 1 |
Power consumption | Typ. 10 W; max. 13 W |
* Configurable via web user interface
** Human Target (size 150x50cm; 25% reflectivity); Environmental conditions may influence range performance
*** Without cables or antenna attached
Specifications are subject to change without notice
On-device Software | |
---|---|
Output interfaces | MQTT; TCP |

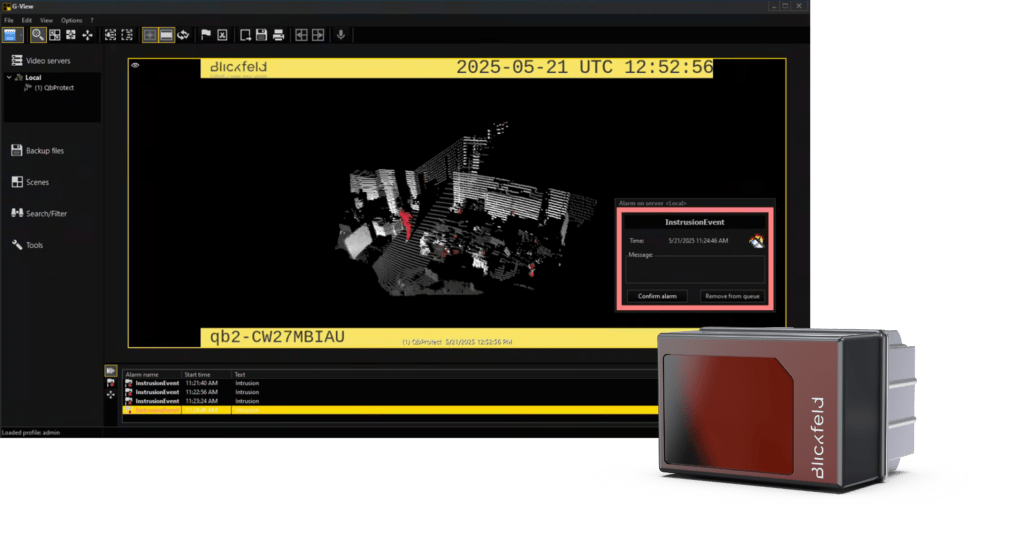

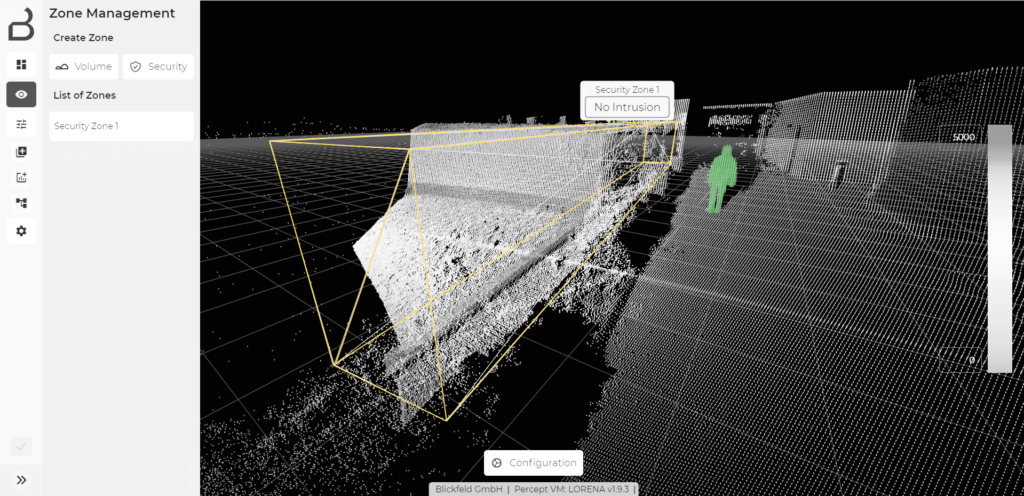

Integrated web interfaces | Interactive 3D LiDAR point cloud visualization; Device configuration / setup; Zone placement and configuration; Alarm logic definition; Interface / output specification |
Alarm types | Pre-Alarms; Intrusion detection; Sabotage / Tampering; Malfunction detection |
Alarm parameters | Object Size (small, human, big); Direction; Number of objects; Alarm duration; Alarm logic (AND/OR/NOT) |
Key Software Features

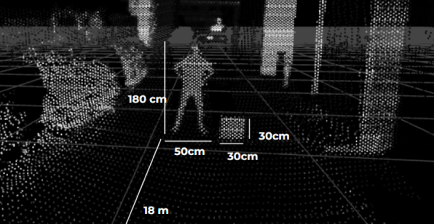

Alarms based on Object Size, Direction and Behavior
QbProtect offers customizable alarm generation based on various parameters, e.g. the size of detected objects (small, medium, large), movement direction or behavior of an object like intruder lifetime. This allows for filtering out small animals, reducing false alarms, and improving detection accuracy.

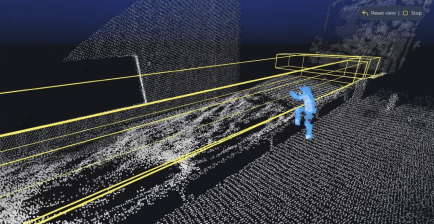

GDPR-compliant RTSP Stream

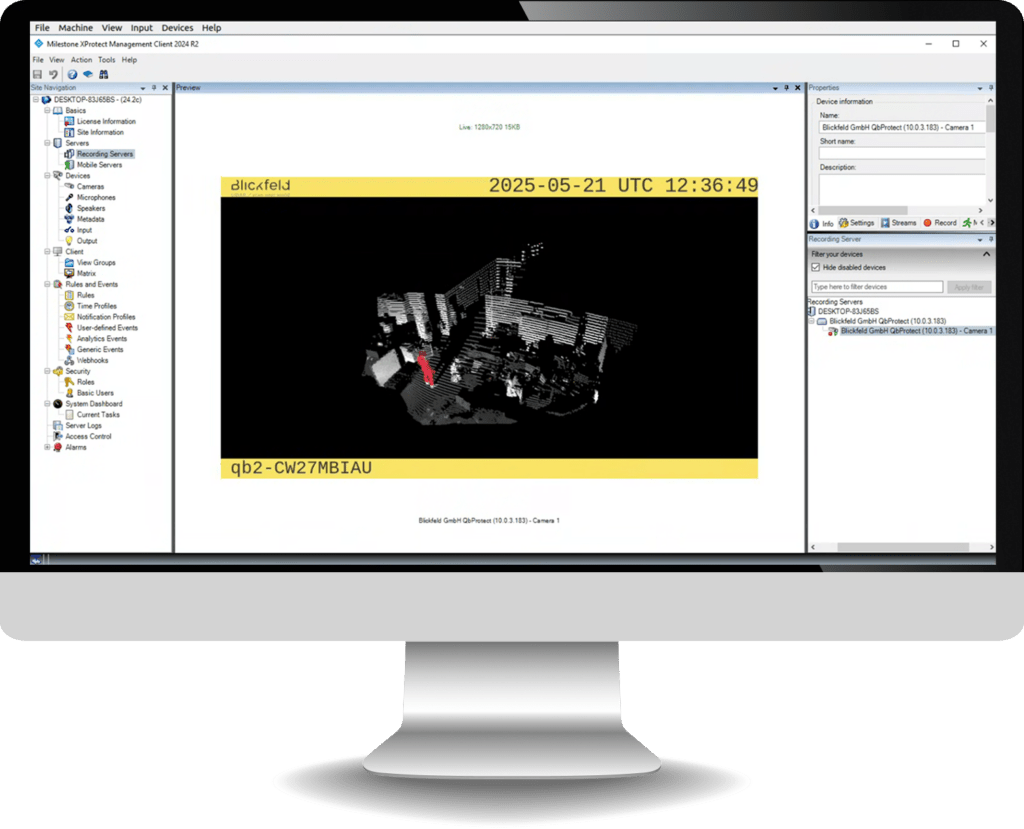

Blickfeld QbProtect provides an RTSP stream that adheres to the standard for real-time video transmission while being inherently privacy-protecting. The transmitted anonymous 3D data is GDPR-compliant, as no personal identifiers are captured, making it ideal for applications where privacy protection is a top priority.

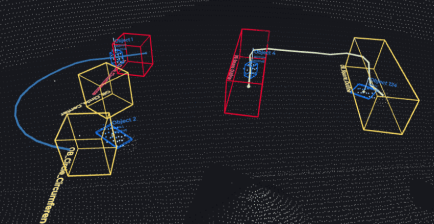

Tracking and Sensor Fusion
Blickfeld QbProtect’s tracking feature allows for the tracking of objects detected within multiple sensors fields of view. Parameters such as minimum track length or track lifetime can be configured to determine whether alarms are triggered. This ensures that only relevant objects and movement patterns are monitored and reported.

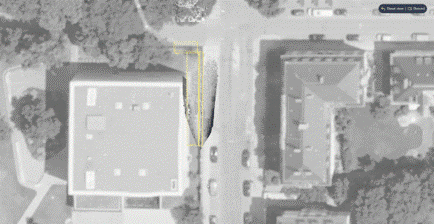

Integrated Geolocation
With QbProtect’s integrated geolocation feature, a map can be placed in the background of the scene, making it easier to align the point cloud into the environment and providing visual feedback. This helps security officers quickly determine the exact location of intrusions.
Product Details

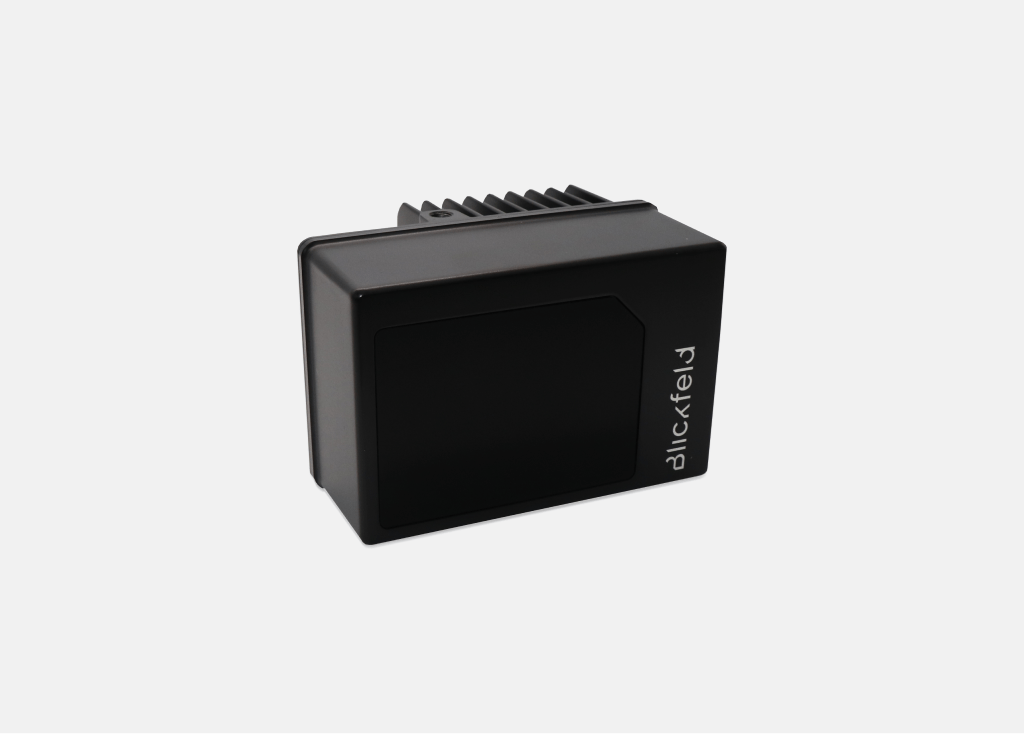

QbProtect

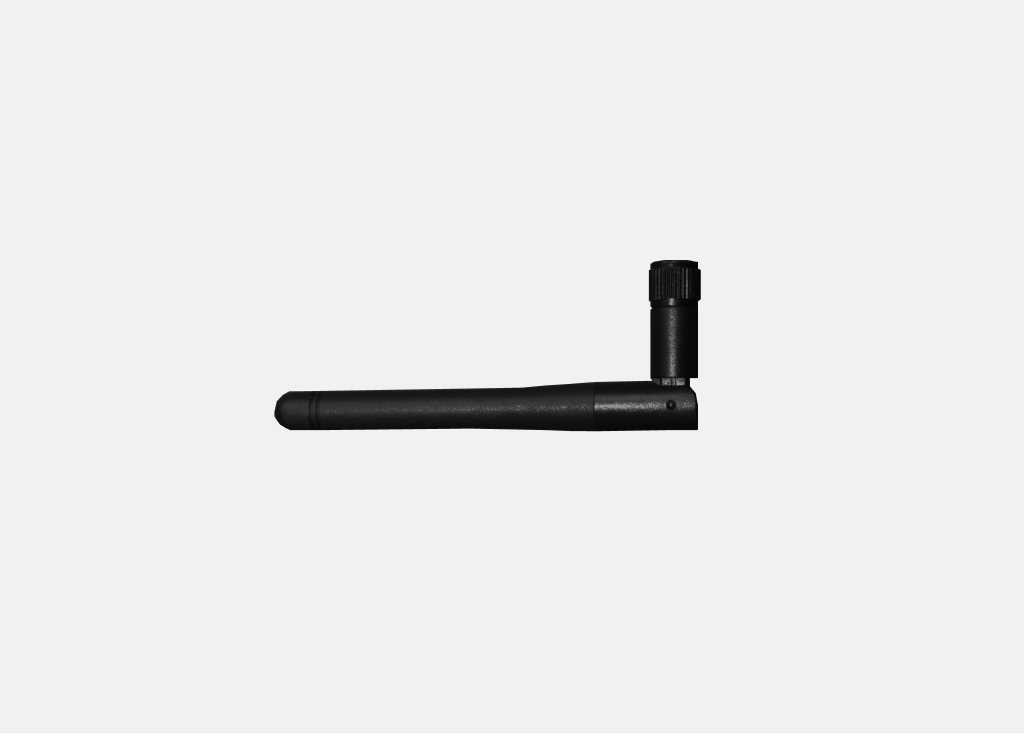

Detachable WiFi antenna

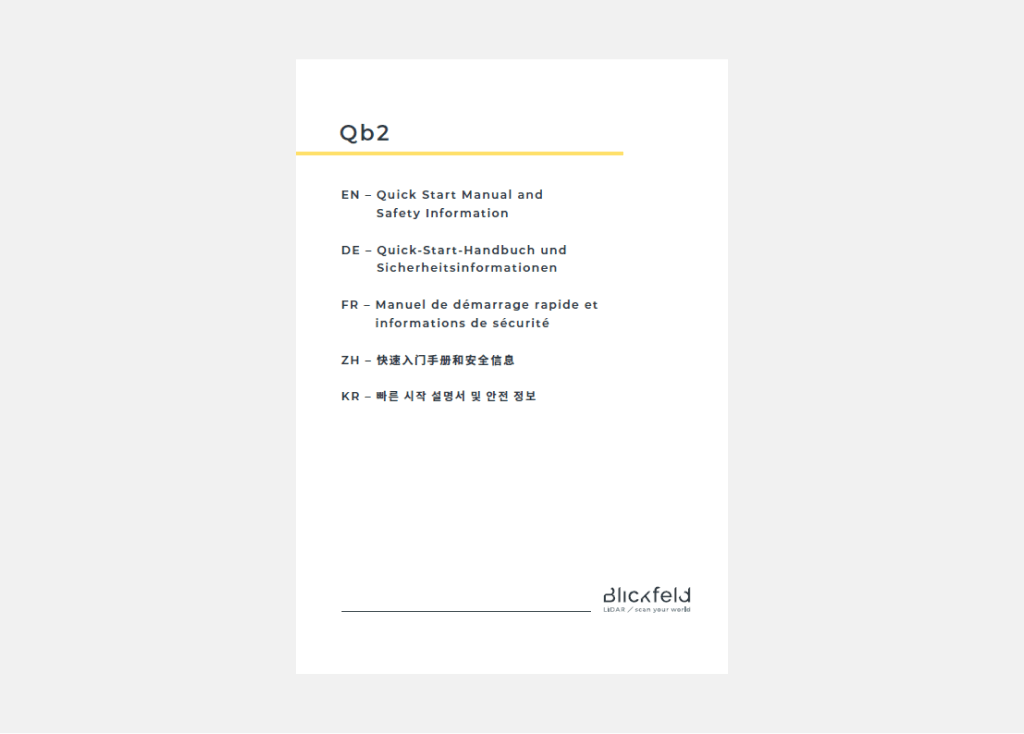

Safety & Compliance manual
Frequently Asked Questions
QbProtect is based on Qb2 hardware, with a specially designed software explicitly for security applications. Users are able to configure their own security zones as well as alarm logic for reliable alarm generation customized to their needs. Users can use our pre-configured flows in order to adapt e.g. data transmissions and corresponding alarm configurations.
QbProtect is able to detect objects based on their true object size via pre-defined parameters that specify the size of an object (distinction between small object, human, big object). Therefore, an exact statement can be made on what kind of object has triggered a detection/intrusion.

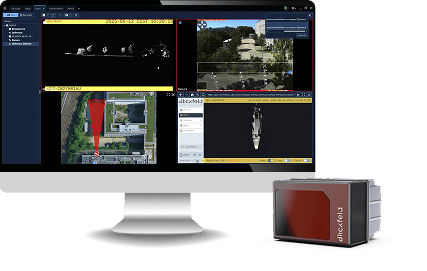

QbProtect can be integrated into your own existing systems via common interfaces (via TCP/IP & MQTT in VMS or Web I/Os, etc.).
Applications
Zone Monitoring

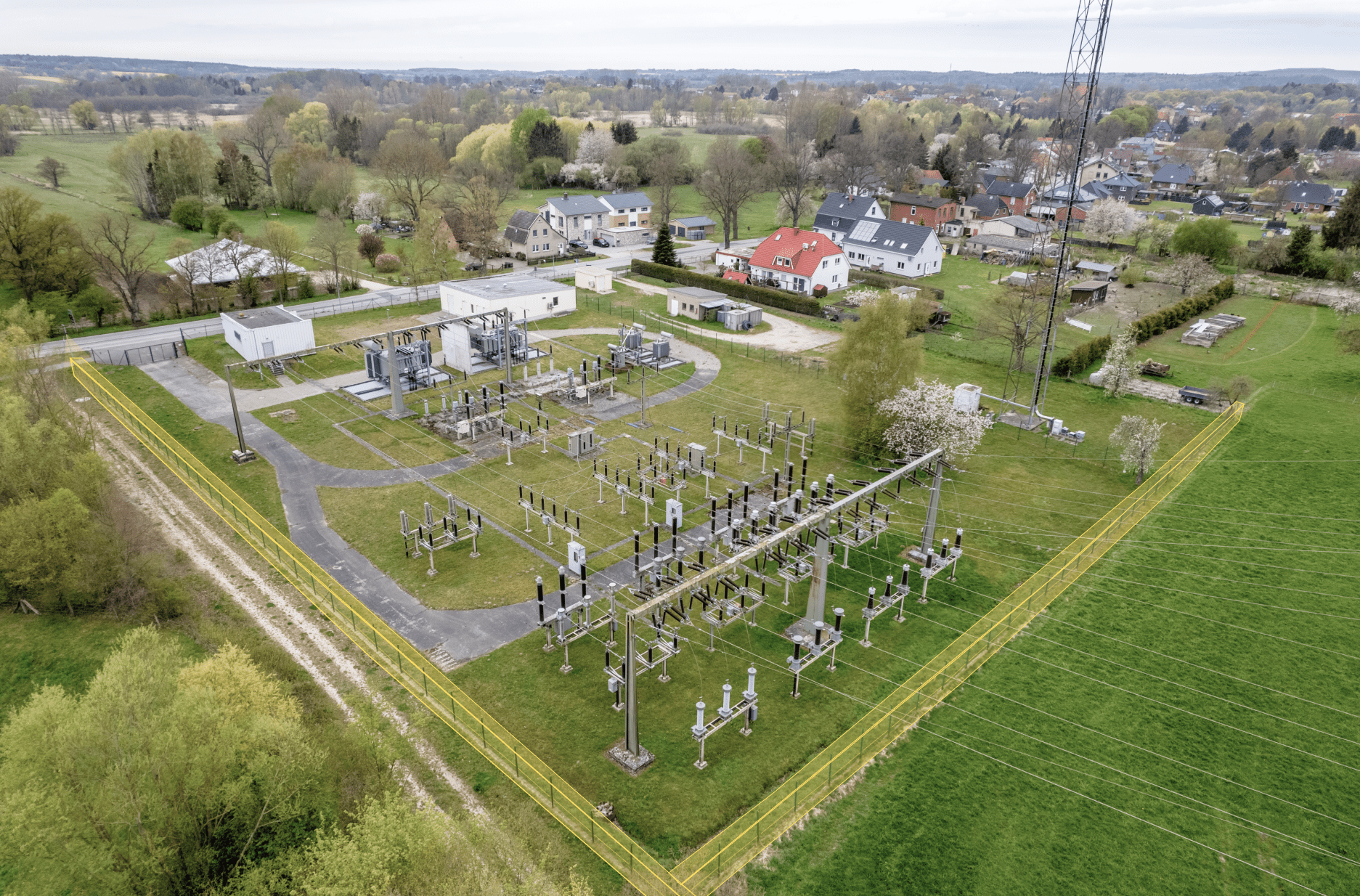

Fence Security
Facade Surveillance
Thanks to its compact design and protection class, Blickfeld QbProtect is an ideal component for the effective protection of highly segmented private property. Resistant to wind and weather, the sensors can be integrated unobtrusively and flexibly into the surroundings. The simple integration into existing, complex security systems was also key for us.
Partners
Blickfeld proudly collaborates with partners in the security sector worldwide, from system integrators to innovative service and solution providers. Contact us to learn more about partnership opportunities today.
Technical Support & Customization
Our technical team consists of field application engineers with different technical backgrounds, including experts in software, hardware or networks and IT.
The team has gained extensive experience in the field by working closely with our key customers.
We are supporting partners and system integrators world-wide with the following services:
- Feasibility analysis and layout planning
- Technical trainings
- Adaptions for customers
Frequently Asked Questions
QbProtect is based on Qb2 hardware, with a specially designed software explicitly for security applications. Users are able to configure their own security zones as well as alarm logic for reliable alarm generation customized to their needs. Users can use our pre-configured flows in order to adapt e.g. data transmissions and corresponding alarm configurations.
QbProtect can be integrated into your own existing systems via common interfaces (via TCP/IP & MQTT in VMS or Web I/Os, etc.).
QbProtect is able to detect objects based on their true object size via pre-defined parameters that specify the size of an object (distinction between small object, human, big object). Therefore, an exact statement can be made on what kind of object has triggered a detection/intrusion.
