Qb2
Industry-first smart 3D LiDAR combines high-performance sensing with advanced on-device processing.
Qb2 harnesses Blickfeld’s proprietary solid-state software-defined LiDAR technology. Setting a new industry standard, Qb2 seamlessly captures and processes high-resolution 3D LiDAR data — all within a single device
With its integrated compute module, Qb2 allows the Blickfeld perception software to run on the device, making it an all-in-one solution, reducing complexity and cost, and providing actionable data for various IoT applications. WiFi on the device removes the need for additional network cabling for fast and simple deployment with minimal investment.
Superior performance and software on-device
The Qb2 sensor supports 3 returns, a laser beam divergence of 0.25° x 0.25°, and delivers up to 400 scan lines per frame, ensuring outstanding point cloud quality for accurate and reliable 3D information. Combining this cutting edge LiDAR technology with a complete perception software stack that runs on device, the Qb2 delivers actionable results.
Key Specifications
Technical Data | |
|---|---|
Field of view (H x V)* | 90° x 50° |
Range* | 1 – 100 m |
Frame rate | 1 – 50 Hz depending on configured scan pattern |
Laser class | Class 1, eye-safe (IEC 60825-1:2014) |
Ingress protection | IP67 |
Dimensions (H x W x D)** | ca. 75 mm x 111 mm x 83 mm |
Weight** | ca. 535 g |
Voltage input | Power over Ethernet (PoE); IEEE 802.3at Type 1 |
Power consumption | Typ. 10 W; max. 13 W |
* Configurable via web user interface
** Without cables or antenna attached
Specifications are subject to change without notice
On-device Software | |
|---|---|
Integrated web interfaces | Interactive 3D LiDAR point cloud visualization; Device configuration / setup; Zone placement and configuration; Interface / output specification; Point cloud recorder |
Object detection and tracking | Movement-based detection and tracking of objects including velocity information. Paths of tracked objects are visualized in the x-y plane. |
Virtual zones | Security zone for zone intrusion detection and alarm generation; volume zone for calculation of cubic meters |
Data output | Detected intrusions; Volume data in cubic meters |
Output interfaces | JSON or Protobuf format over MQTT; TCP |
Suitable for numerous applications
The software-defined 3D LiDAR sensor is versatile, featuring a flexibly adaptable field of view and configurable scan pattern. Designed to meet the requirements of various application scenarios, the Qb2 offers a wide field of view and high resolution and accuracy. With its proprietary solid-state technology, the sensor is maintenance-free and durable. The on-device processing and the WiFi connectivity make Qb2 a smart solution for automation across numerous industries.

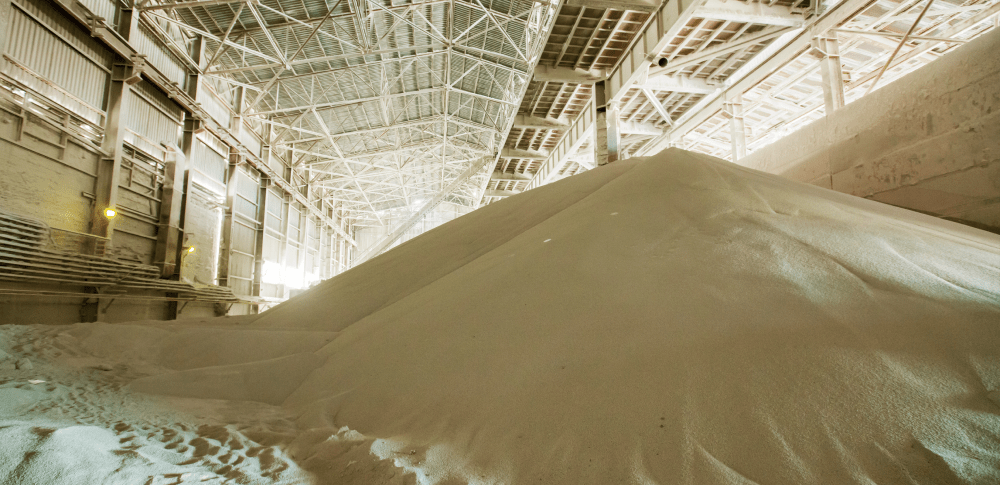

With its rugged IP67 ingress protection, the Qb2 withstands harsh environments. Its high point cloud density and noise filter ensure accurate volume and profile measurements, even in the presence of dust particles. The sensor's on-device WiFi eliminates the need for additional network cabling, simplifying installation for seamless volume monitoring.

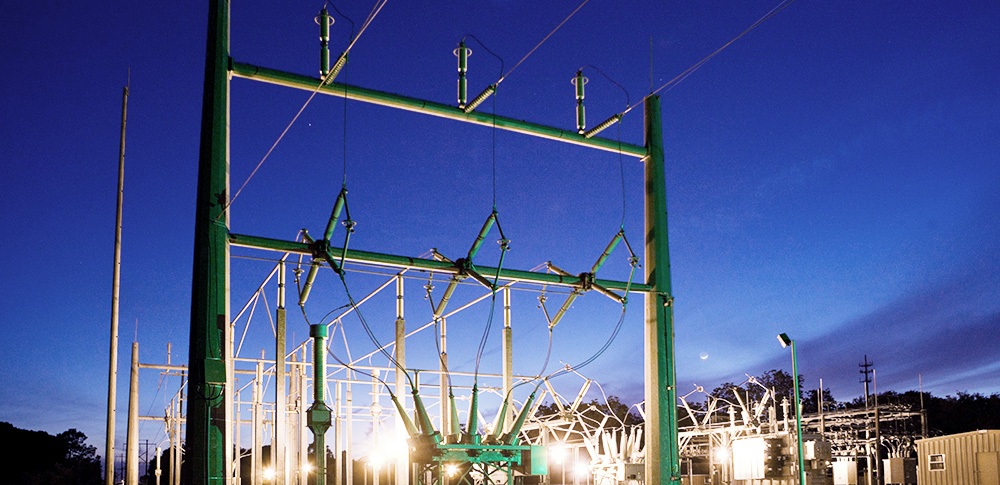

With on-device processing, the Blickfeld Qb2 eliminates the need for additional computing units and enables real-time intrusion detection. It operates effectively in various lighting conditions, making it ambient light agnostic. With its disruptive technology, it offers a new level of low false alarm rates, ensuring accurate and reliable security monitoring across wide areas.
Edge processing enables real-time data analysis, while its scalability allows for integration of multiple sensors. The sensor ensures privacy by capturing no personal identifiable information, offering end-to-end tracking with unique IDs. Additionally, its inconspicuous design, noiseless operation, and sleek aesthetics make it an unobtrusive choice for crowd analytics applications.
With its high accuracy, resolution, and wide field of view, the Qb2 enables precise mapping, obstacle detection, and environmental analysis. Its low power consumption extends flight times and enhances operational efficiency, ensuring accurate mapping, obstacle avoidance, and situational awareness during aerial operations.
The Blickfeld Qb2 reliably detects obstacles and maps surroundings, with a wide field of view for efficient navigation in dynamic environments. Its compact and lightweight design enables seamless integration, while high resolution and on-device processing provide precise and real-time perception data. With low power consumption, WiFi connectivity, and standard communication protocols, the Qb2 simplifies integration and enhances overall efficiency.
The Qb2 LiDAR sensor is well-suited for intelligent transportation systems. With its large area coverage, high resolution, and accuracy, it enables reliable object detection, tracking, traffic monitoring, and pedestrian safety. Its Power over Ethernet capability eliminates the need for additional cabling, and its robust design ensures effective operation even in challenging weather conditions.
Reliable performance in the real-world
Blickfeld Qb2 sensors offer reliable performance in real-world scenarios. Their rugged design ensures long-term availability in harsh environments, with a wide temperature range of -30°C to 60°C and IP67 Ingress Protection. Integration is seamless with PoE and WiFi, while on-device processing eliminates the need for additional computers. Choose our sensors with dust repellent enclosures for added durability and peace of mind.
Product Details

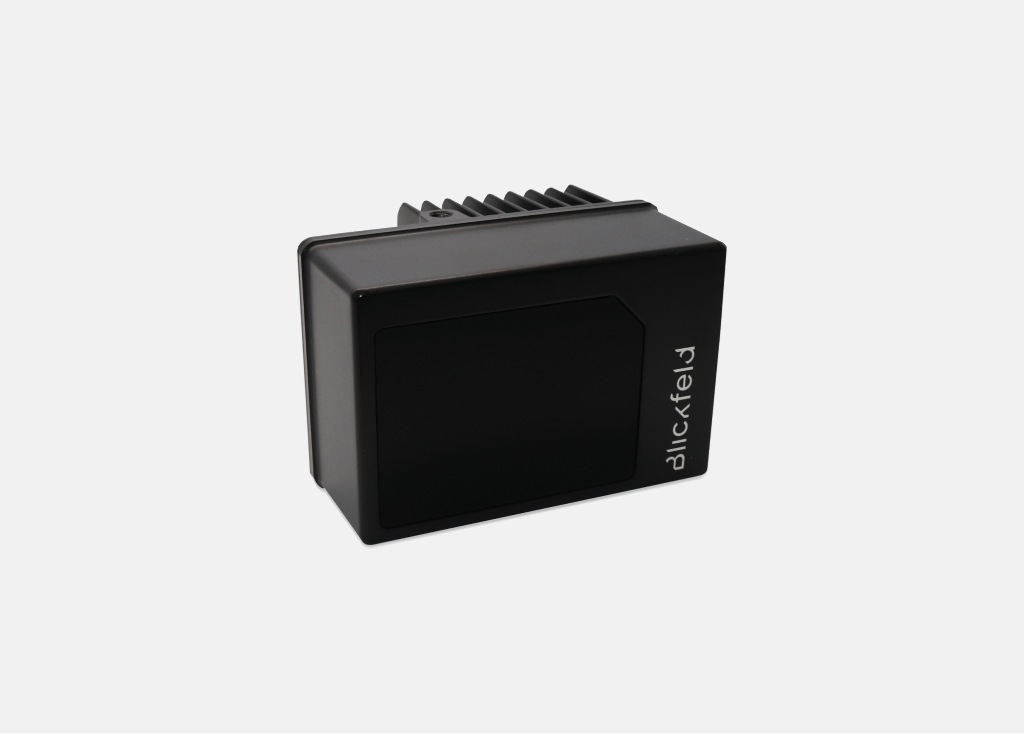

Qb2

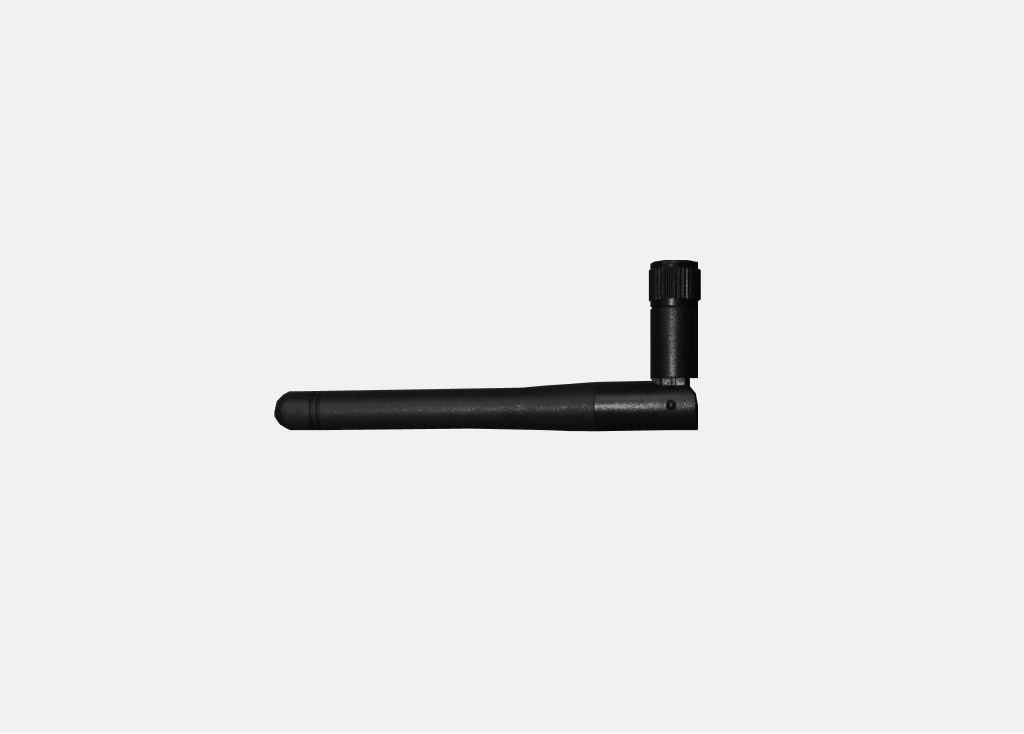

Detachable WiFi antenna

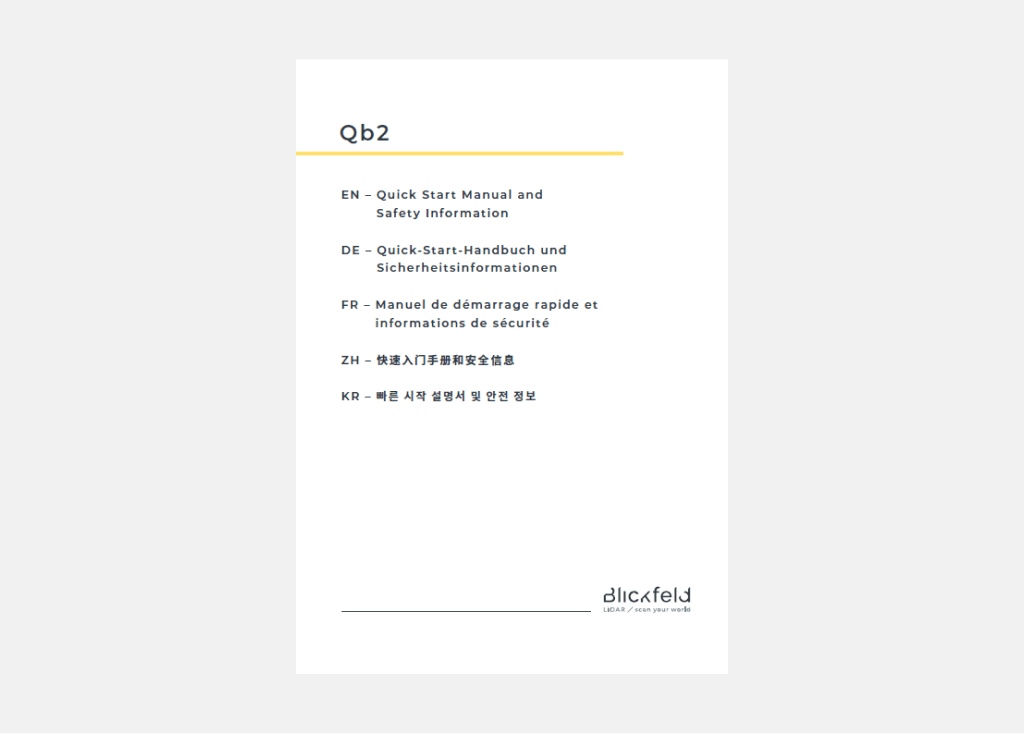

Safety & Compliance manual
Always improving
Blickfeld’s smart sensors are continuously enhanced with cutting-edge features through regular firmware updates, ensuring ongoing improvements in perception and performance.
Frequently Asked Questions
Choose the standard version if you require a small device footprint and weight and if the ambient temperature at the operating location is expected to not exceed 40 °C. If higher temperatures might occur, choose the Extended Temperature Range (ETR) version.
The Qb2 supports the IEEE 802.11 b/g/n WiFi standards in the 2.4 GHz band and the IEEE 802.11 n/ac WiFi standards in the 5 GHz band.
The antenna is not necessary for operating the sensor. It is only required when using the WiFi functionality. Please note that WiFi operation is only permitted with the Blickfeld-authorized antenna.
You can purchase a Qb2 by reaching out to us directly.
