Cube 1
Cube 1 has been discontinued – Discover our next-generation sensors for even more advanced performance
The versatile 3D LiDAR sensor features a software-defined flexibly adaptable field of view and configurable scan pattern. The Cube 1 offers a wide field of view and long-range detection while maintaining a compact form factor and light weight. The proprietary solid-state technology is maintenance-free and durable. The on-device pre-processing and the easy-to-use web user interface make Cube 1 a smart solution for numerous applications.
Cube 1 Discontinuation Notice
The Cube 1 has been discontinued. For detailed information on the discontinuation and transition to alternative solutions, please download the official notice below.
Key Specifications
Cube 1 | Cube 1 Outdoor | |
|---|---|---|
Typical application range | 1.5 – 75 m | 1.5 – 75 m |
Field-of-view (H x V)* | 70° x 30° | 70° x 30° |
Vertical resolution* | 5 – 400 scan lines per frame | 5 – 400 scan lines per frame |
Horizontal resolution* | 0.4° – 1.0° | 0.4° – 1.0° |
Frame rate* | 1.5 – 50 Hz; e.g. 10 Hz at 50 scan lines | 1.5 – 50 Hz; e.g. 10 Hz at 50 scan lines |
Number of returns* | 3 | 3 |
Dimensions (H x W x D) | 60 mm x 82 mm x 50 mm | 60 mm x 97 mm x 50 mm |
Weight | 275 g | 330 g |
Power consumption | 8.5 W | 9 W |
Laser class | Class 1, eye-safe (IEC 60825-1:2014, Ed. 3) | Class 1, eye-safe (IEC 60825-1:2014, Ed. 3) |
* Configurable via web user interface; Specifications are subject to change without notice

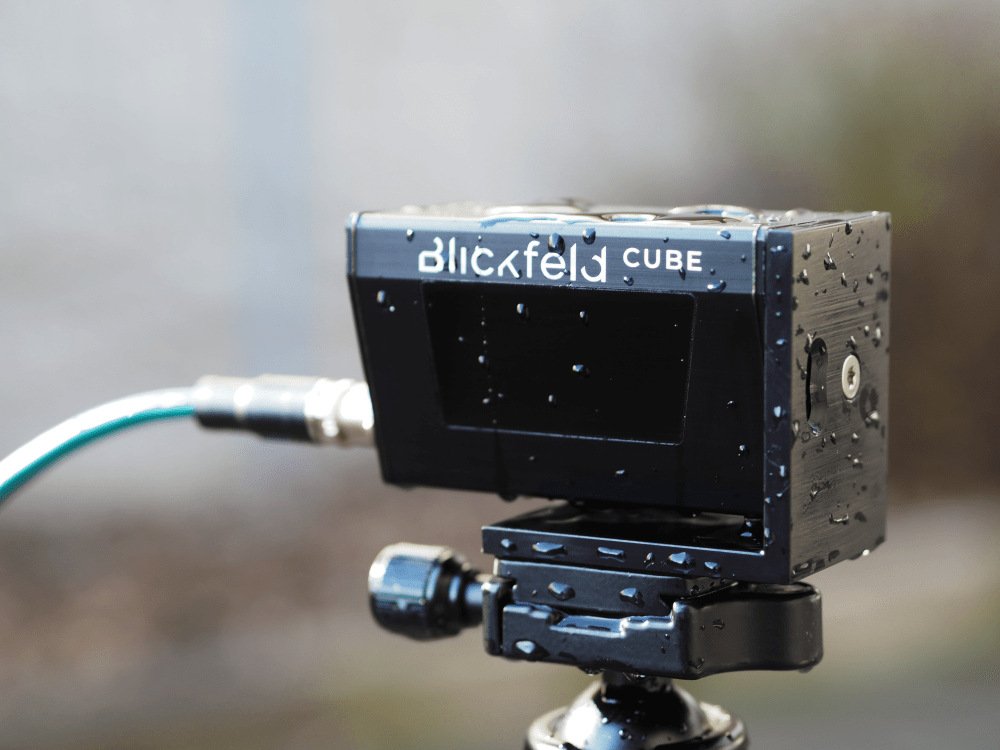

All-environment sensing
The Blickfeld Cube 1 Outdoor provides high-quality data even in adverse environmental conditions such as rain, fog, and snow. The IP65-rated housing is specially designed for demanding applications that require a dust and waterproof sensing solution. With its Power over Ethernet capability and no need for clumsy adapter boxes, installation time and maintenance efforts are kept at a minimum.

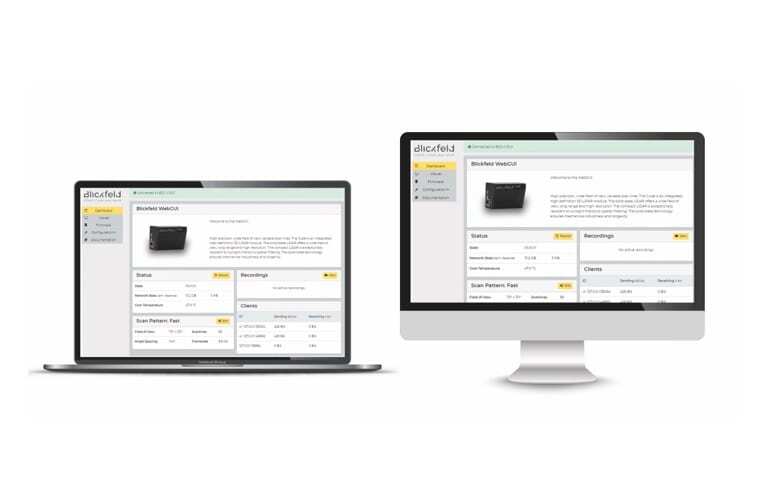

Intuitive web user interface
With the intuitive user interface, the Cube 1 can be quickly put into operation and be individually configured in real-time.

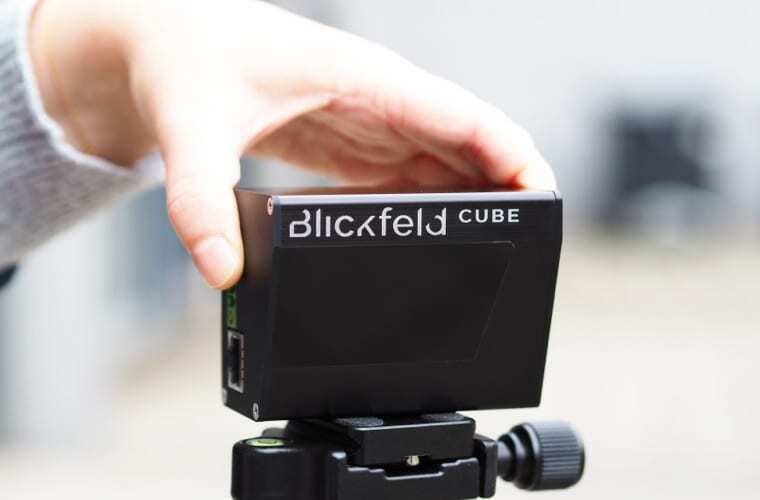

Small size
The Cube 1’s compact size and light weight of as little as 275 grams makes it the perfect fit for various applications.
Configurable scan pattern
The field-of-view, number of scan lines, and scan rate can be flexibly customized to meet every application’s needs.
We chose the Cube 1 due to its solid-state nature, which makes it very resistant to vibrations, that are a major challenge when operating drones.
Additional Features
- Power over Ethernet
- Easy installation and setup
- On-device motion detection
- PTP and NTP time synchronization options
- Built-in IMU
- TAA Compliant
- Silent and discreet device
Get in Touch
While Cube 1, our first-generation industrial 3D LiDAR sensor, has been discontinued, we’re here to help. Reach out to us for information on alternative solutions or to discuss your specific needs. Get in touch via our contact form or directly with one of our representatives.
Akram Ben Youssef
Junior Sales Manager
Region: Europe
+49 89 230 69 35 60
Schedule a meeting
Patrick Pylypuik
President, Blickfeld North America Inc.
Region: North America
+1 (855) 335 4327
Dirk Rathsack
VP Business Development & Sales
Region: Rest of World
+ 49 174 230 3357
Schedule a meeting
Frequently Asked Questions
The Cube 1 has been discontinued. If you still have a need, please contact us – we’ll find a solution that meets your requirements.
To transition from Cube 1 to a recommended replacement, follow these steps:
1. Review the datasheets and technical documentation for Qb2 and QbProtect to understand the differences in specifications and performance.
2. Reach out to our sales or customer support teams to discuss your specific use case and technical requirements. They can help you determine the best replacement option based on your project needs.
You need an end device with a recent internet browser to configure the device and view data output. The Cube 1 standard variant comes with a power supply unit with the approriate connector and an ethernet cable for data transmission, while the Cube 1 Outdoor, Qb2 products and QbProtect only require Power over Ethernet power supplying equipment. Blickfeld offers a range of optional accessories for mounting and cabling the devices.
Yes. You can find corresponding ROS(2) drivers on the Blickfeld website at https://www.blickfeld.com/resources/.
