Cube Range 1 – Smart LiDAR

Extra-long-range detection & high accuracy

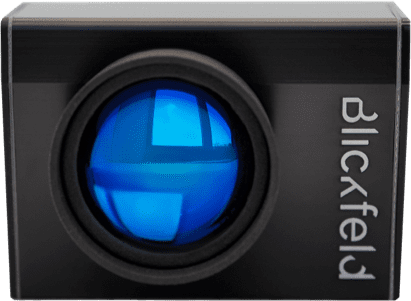

Cube Range 1

The Cube Range 1 is made for extra-long-distance detection and offers high-precision 3D measurements. It features an adaptable field-of-view, a configurable scan pattern for versatile usage in various industries. No additional adapter boxes are required for operation and the point cloud interface ensures easy handling and configuration. On-device pre-processing and associated recognition software makes the Cube Range 1 a smart solution for numerous applications.

Key Specifications

Typical application range
5 – 150 m
Maximum detection range
250 m
Field of view (H x V)
18° x 12°
Vertical resolution
5 – 200 scan lines per frame (user configurable)
Horizontal resolution
0.24° – 0.4° (user-configurable)
Operating voltage
12 V
Power consumption
less than 15 W
Laser class
Class 1, eye-safe (IEC 60825-1:2014, Ed. 3)

Specifications are subject to change without notice

Distinctive Features

Long-range detection

High resolution

Configurable scan pattern

Small size and light weight

Intuitive web user interface

On-device processing

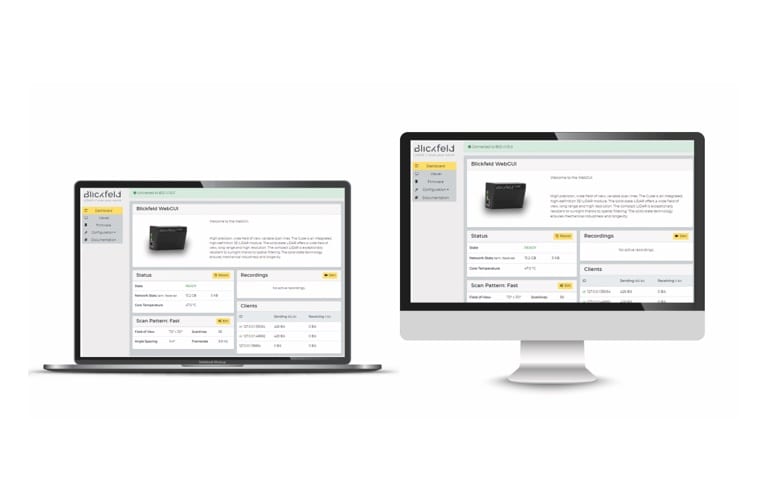

Intuitive web user interface

Intuitive web user interface

With the intuitive and easy-to-use web user interface, the Cube Range can be quickly put into operation and be individually configured in real-time.

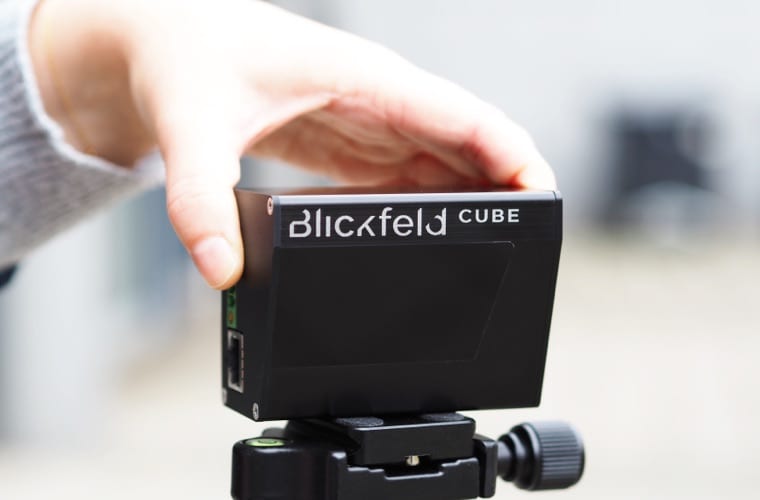

Unrivaled small size

Unrivalled small size

The Cube Range’s compact size and light weight of only 385 grams makes it the perfect fit for a wide range of applications.

Configurable scan pattern

The field-of-view, number of scan lines, and scan rate can be flexibly customized to meet every application’s needs.

Additional features

OST - Ostschweizer Fachhochschule
The long range and integrated data analysis of the Cube Range 1 allows us to effectively detect and track drones in flight.
Markus Henne
Professor, Institute Partner IWK
